Composition:
- Protective Film
- Transparent Layer
- PVDF Light Layer
- PVDF Main Layer
- Anticorrosive Paint Layer
- Front Aluminium Layer
- Mineral Core – FR Flame Retardant
- Bondeo layer
- Subsequent Aluminium Layer
- Anticorrosive Layer / Primer
Due to its composition Alutec® composite aluminum panels offer great versatility for projects that require long durability and fast installation. We offer both the standard .50 mm aluminum skin.
Adapting to any design requirement. Fire retardant certification, is available under special request.
Sizes:
| PRODUCT | TYPE COLOR | TOTAL THICKNESS | SIZE INCHES | SIZE FEET | SKIN THICKNESS | WEIGHT PER SHEET LBS | NUMBER OF SHEETS PER SKID | EMPTY SKID WEIGHT LBS |
| Alutec | Basic | 4 mm | 62″x196″ | 5.16 x 16.33 ft | 0.50 mm | 100.34 | 50 | 441 |
| Alucomex | Basic | 4 mm | 61″x196″ | 5.08 x 16.33 ft | 0.30 mm | 91.9 | 50 | 441 |
| Alucomex | Gloss | 4 mm | 61″x196″ | 5.08 x 16.33 ft | 0.30 mm | 91.9 | 50 | 441 |
| Alucomex | Woods | 4 mm | 48″ x 120″ | 4×10 ft | 0.30 mm | 44.31 | 40 | 220 |
| Alucomex | Embossed Woods | 4 mm | 48″ x 120″ | 4×10 ft | 0.30 mm | 44.31 | 40 | 220 |
| Alucomex | Marbles | 4 mm | 48″ x 120″ | 4×10 ft | 0.30 mm | 44.31 | 40 | 220 |
| Alucomex | Mirrors | 4 mm | 48″ x 120″ | 4×10 ft | 0.30 mm | 44.31 | 40 | 220 |
| Alusign | Basic | 3 mm | 48″ x 96″ | 4×8 ft | 0.15 mm | 24.55 | 120 | 220 |
| Alusign | Basic | 3 mm | 48″ x 96″ | 4×8 ft | 0.20 mm | 25.21 | 120 | 220 |
| Alusign | Basic | 3 mm | 48″ x 120″ | 4×10 ft | 0.15 mm | 30.68 | 120 | 220 |
| Alusign | Basic | 3 mm | 48″ x 120″ | 4×10 ft | 0.20 mm | 31.51 | 120 | 220 |
Aplications:
Alutec is an ideal material for:

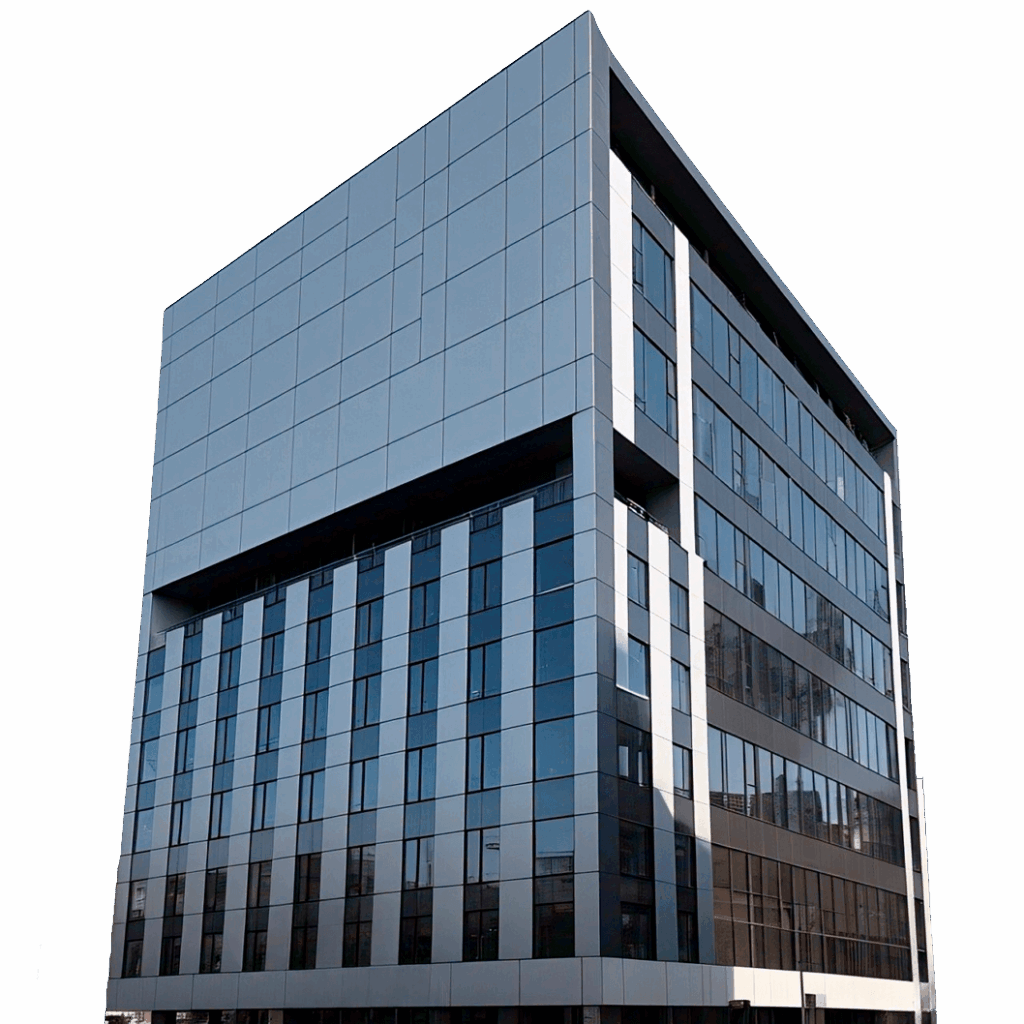

- Buildings
- Corporate offices
- Stadiums
- Airports
- Schools
- Hospitals, etc.
Because of their quality and manufacturing processes our panels are certified and guaranteed under international standards such as ASTM, offering special qualities such as flame retardation.
Our Advantages:
- Same US time zone = faster service,
- Because of the USMCA there are no importation tariffs into the US,
- Factory is just a couple of hours flight from major US airports,
- We do custom made to better fit your speciffic needs.
Sustainability:
In our effort to continuously contribute to Sustainability all of our polyethylene core is recycled, significantly reducing environmental impact by preventing millions of plastic bags from being dumped into the ocean.
According to the PEW Project, at least 13 million metric tons of plastic enter the ocean each year, threatening marine life and polluting shorelines. In 2022 we have consumed the 0.03% of those 13 millions MT
